Iran bitumen supply
Documented sourcing profile covering Jey Oil Refining and Pasargad Oil refinery materials, packaging references and supplied technical specifications.
Request bitumen quotation
01 · Refinery sources

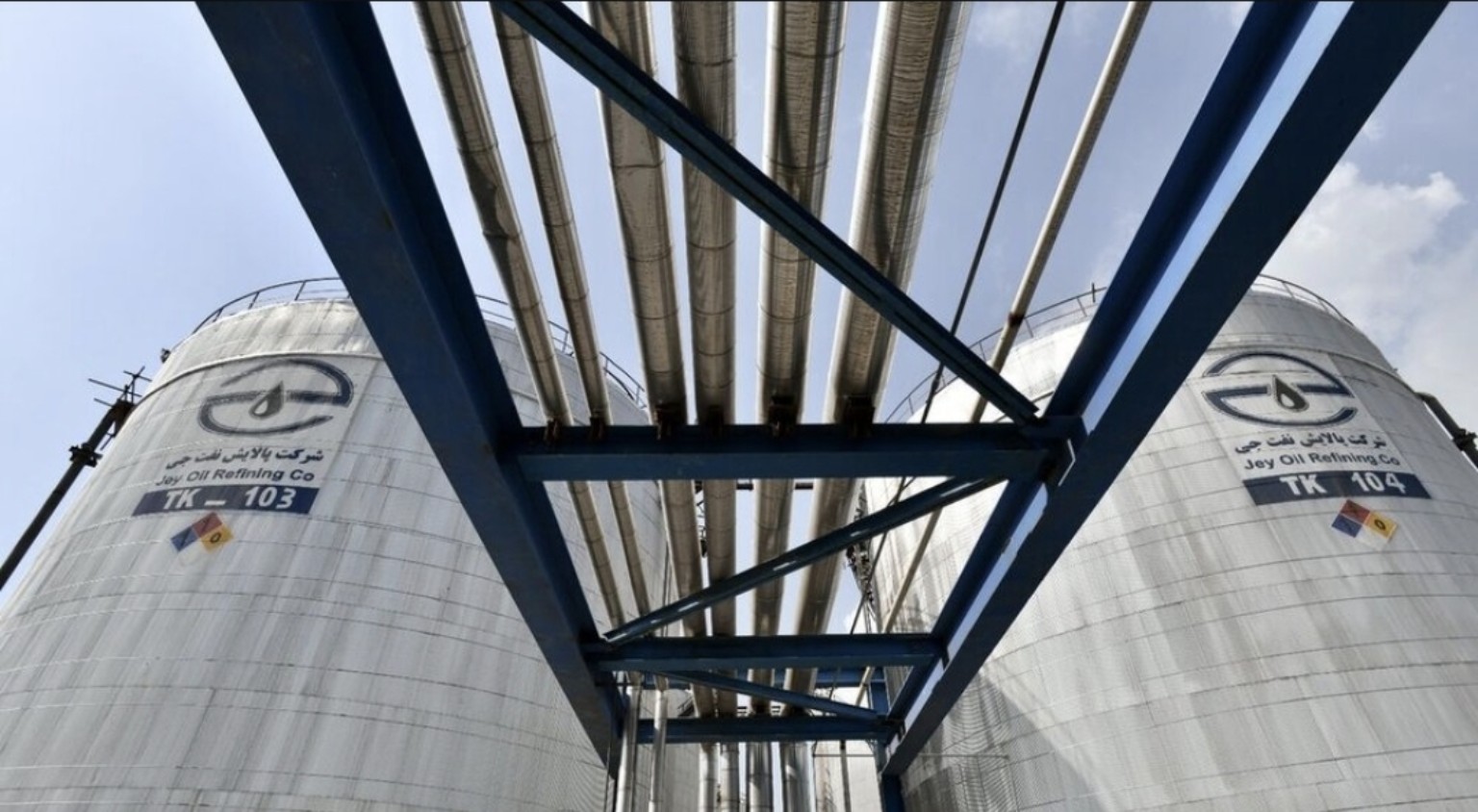

Jey Oil Refining
Jey Oil Refining was established in 2003 and operates as a major producer of multiple bitumen grades for regional and export markets.
Its operating network includes production and storage in Isfahan, production and export storage in Bandar Abbas, export storage in Chabahar, storage at Imam Khomeini Port and a central office in Tehran.
- Nominal capacity: approximately 1,045,000 tonnes
- Products: penetration, viscosity, performance, emulsion, cutback and polymer-modified bitumen
- Original standards and certificates are retained below

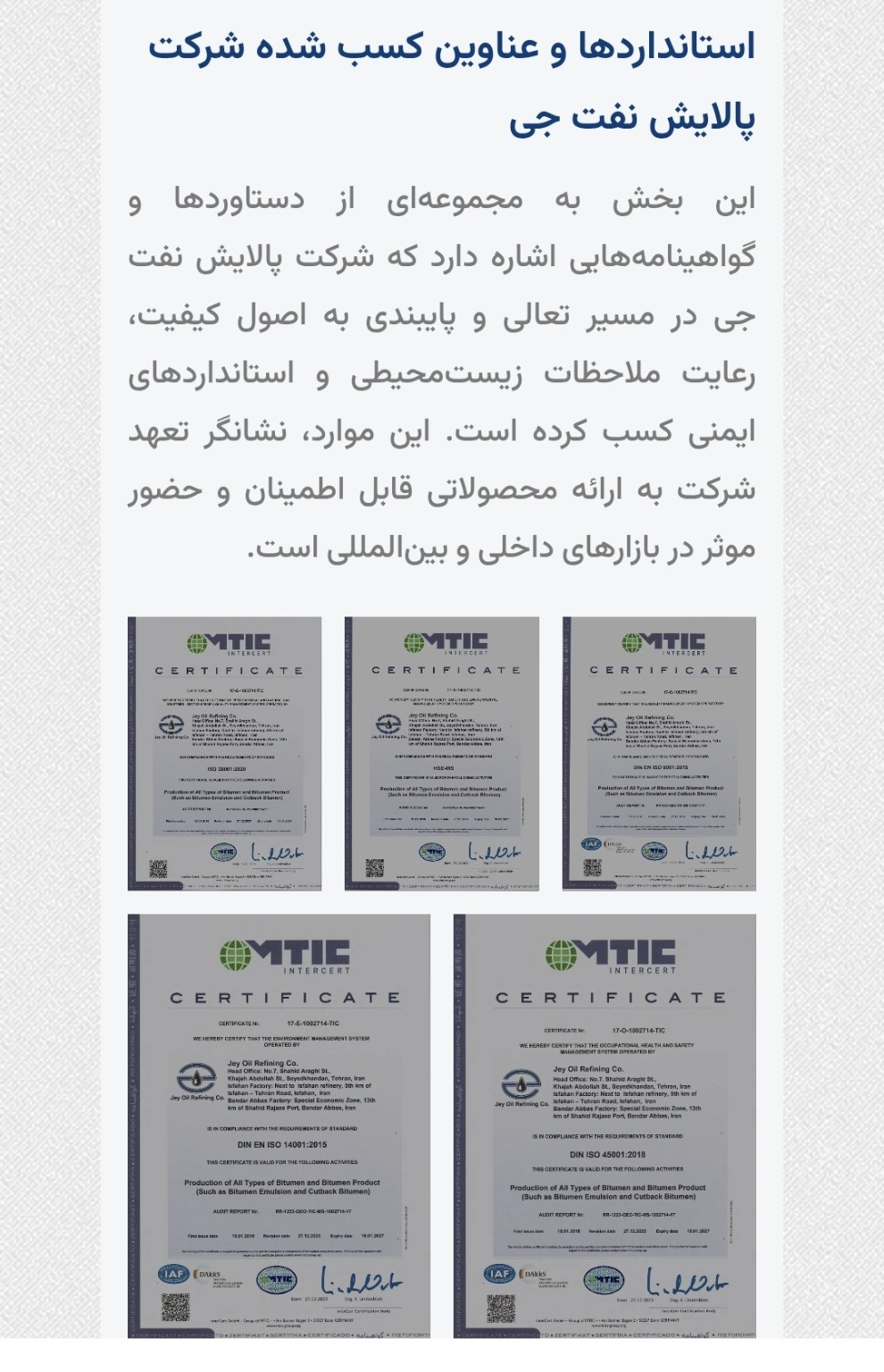

Standards and certifications
02 · Refinery sources
Pasargad Oil
Pasargad Oil was established in 2003 and operates six bitumen refining units in Tehran, Arak, Abadan, Tabriz, Shiraz and Bandar Abbas, with combined annual production capacity exceeding four million tonnes.
The Bandar Abbas drum-making unit was developed to support metal-drum packing close to the filling line. Available drum dimensions and daily packing capacity are confirmed for each order.
- Six refining units across Iran
- Annual production capacity: over 4 million tonnes
- Products: penetration, viscosity, performance, emulsion, cutback and polymer-modified grades

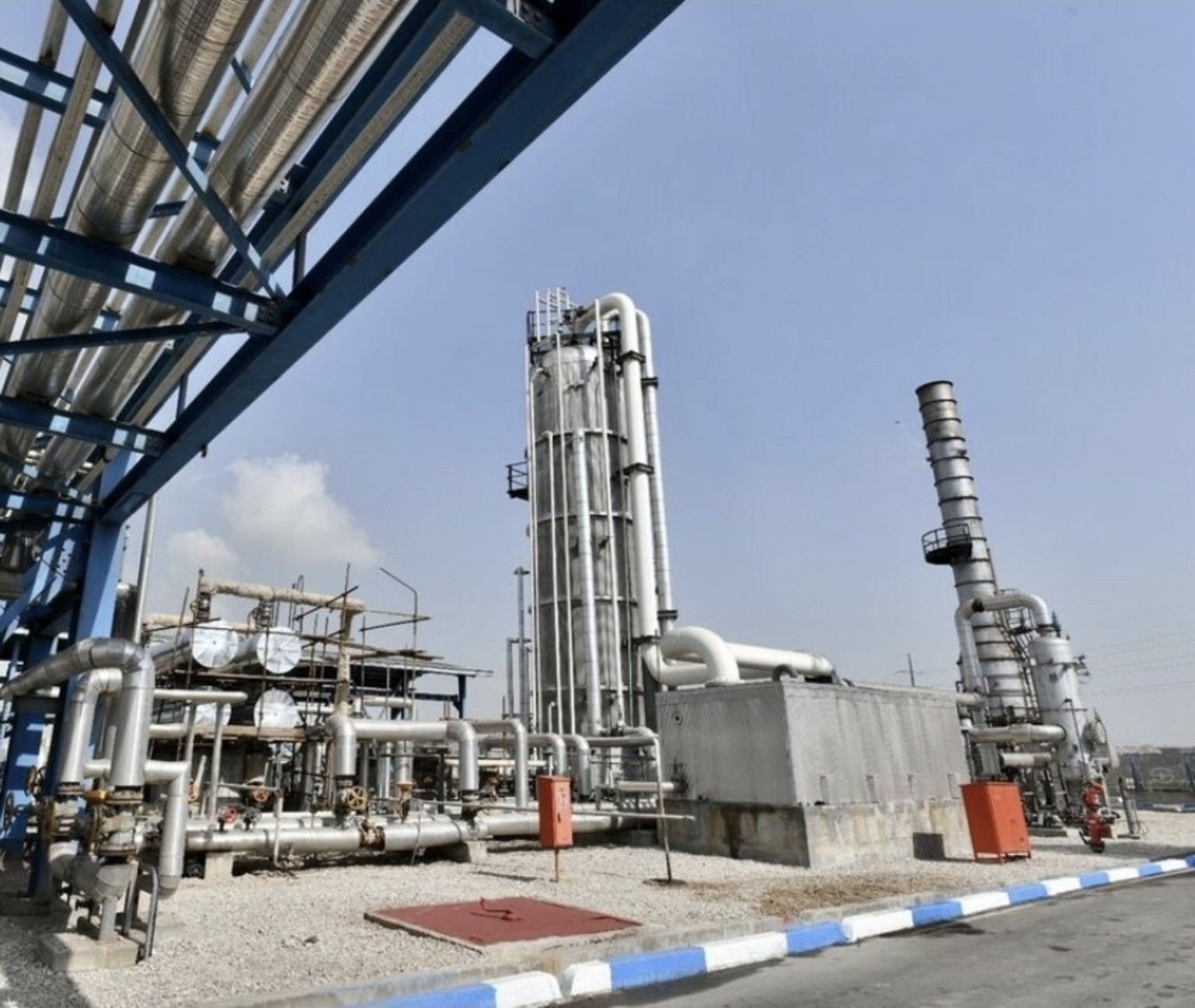

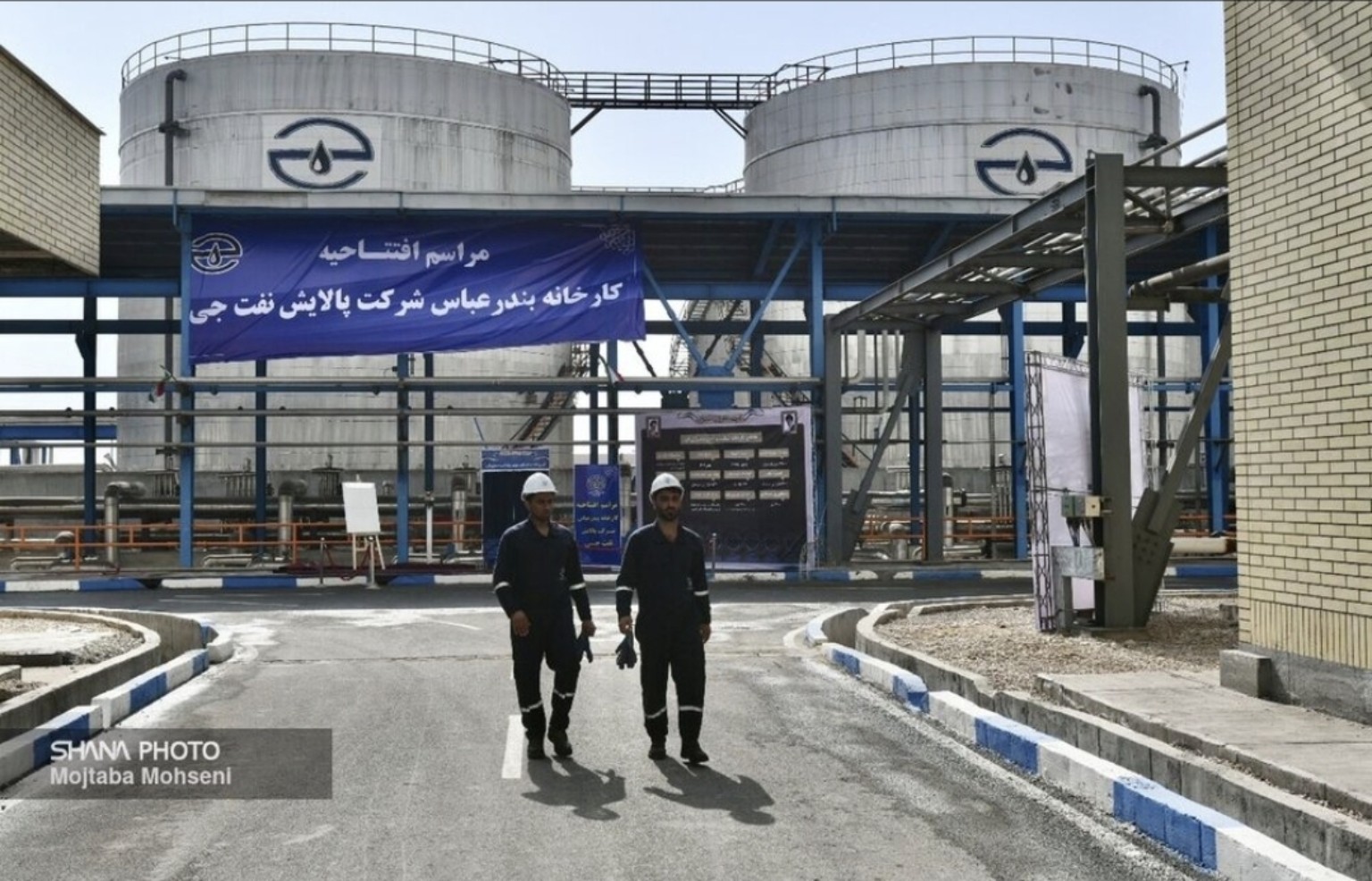

Refinery gallery
Export packaging

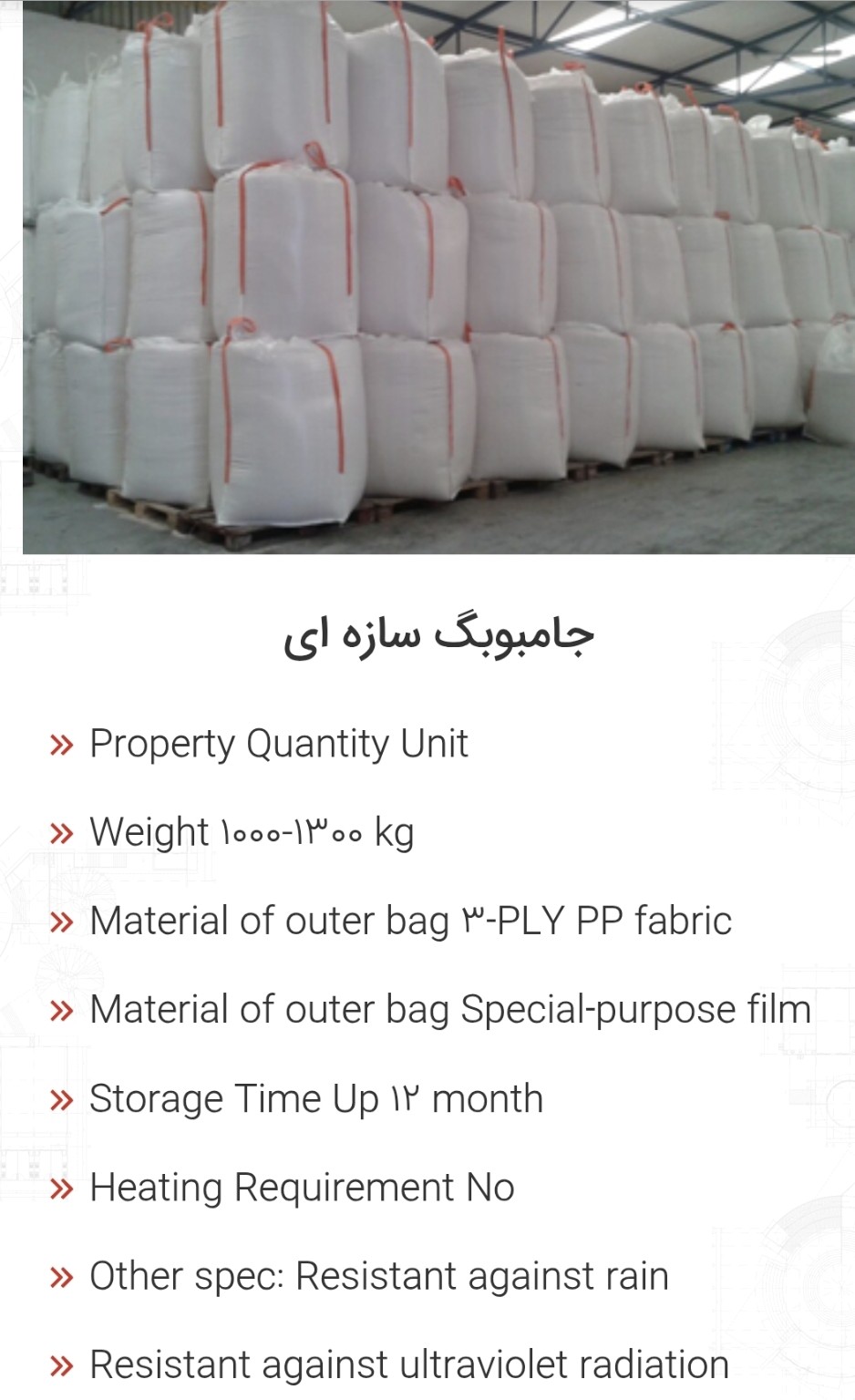

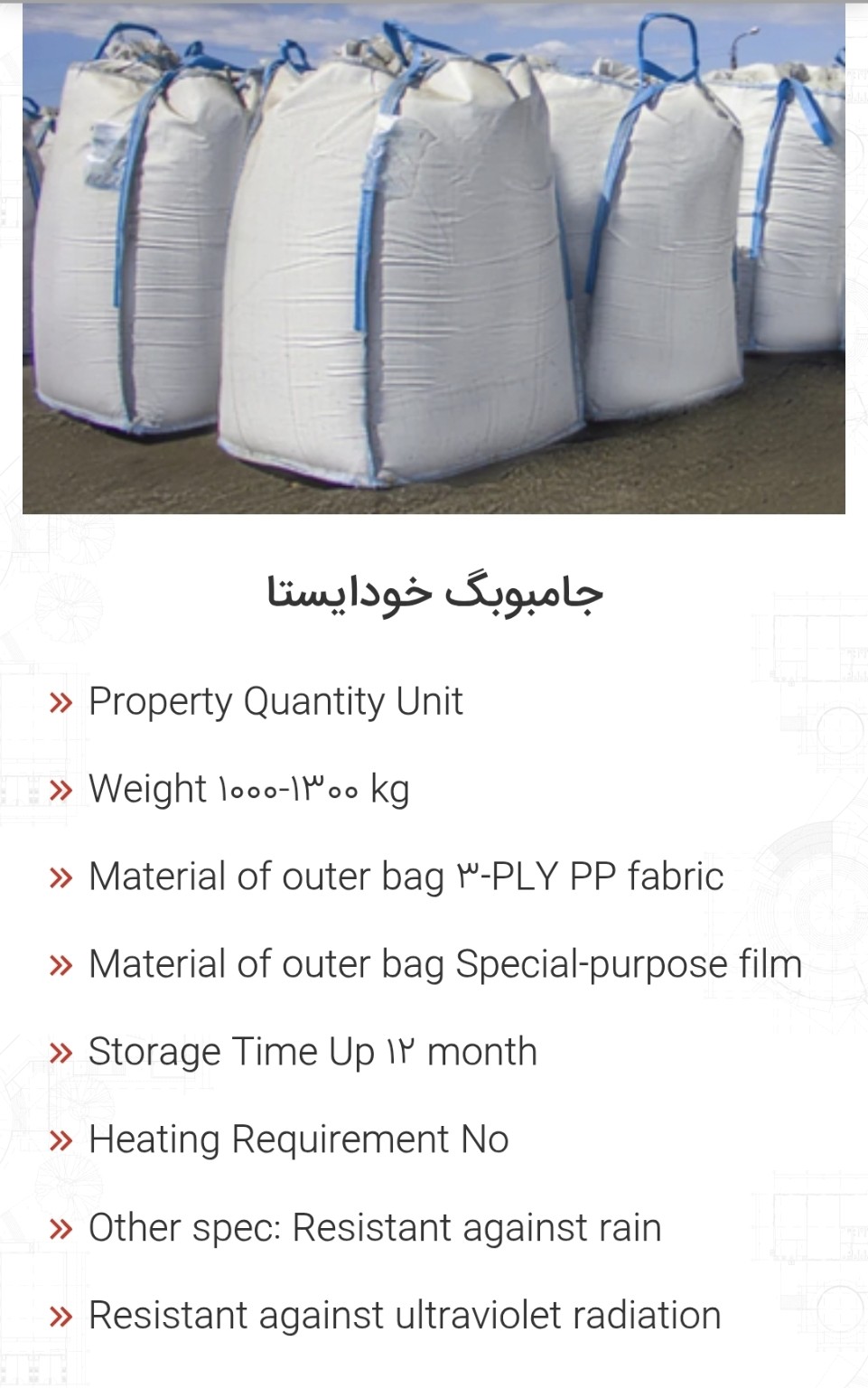

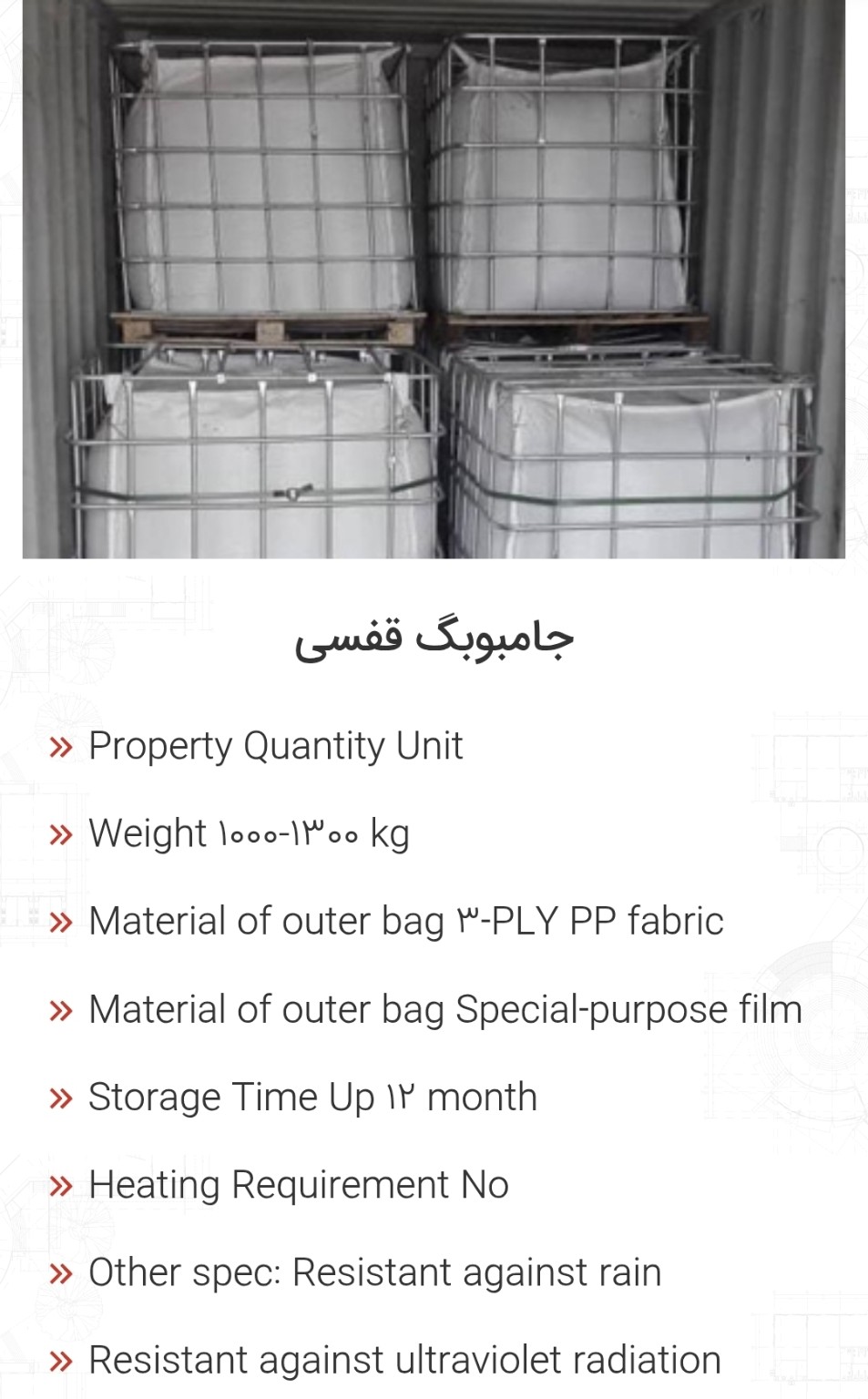

Available formats include steel drums, 1,000–1,300 kg self-standing jumbo bags, palletized jumbo bags and caged jumbo bags. Final packing is confirmed against grade, route and destination requirements.
Packaging specifications
| Specification | Value |
|---|---|
| Nominal load | 1,000–1,300 kg |
| Outer layer | 3-ply polypropylene fabric |
| Inner liner | Special-purpose film |
| Storage period | Up to 12 months |
| Heating required | No |
| Weather resistance | Rain and ultraviolet radiation |
Pasargad metal-drum unit
The Bandar Abbas drum-making unit supplies export-grade metal drums beside the bitumen filling line.
| Daily drum capacity | Up to 7,000 units |
|---|---|
| Standard body thickness | 0.6 mm |
| Common drum heights | 89 ± 3 cm / 68 ± 3 cm |
Technical documents

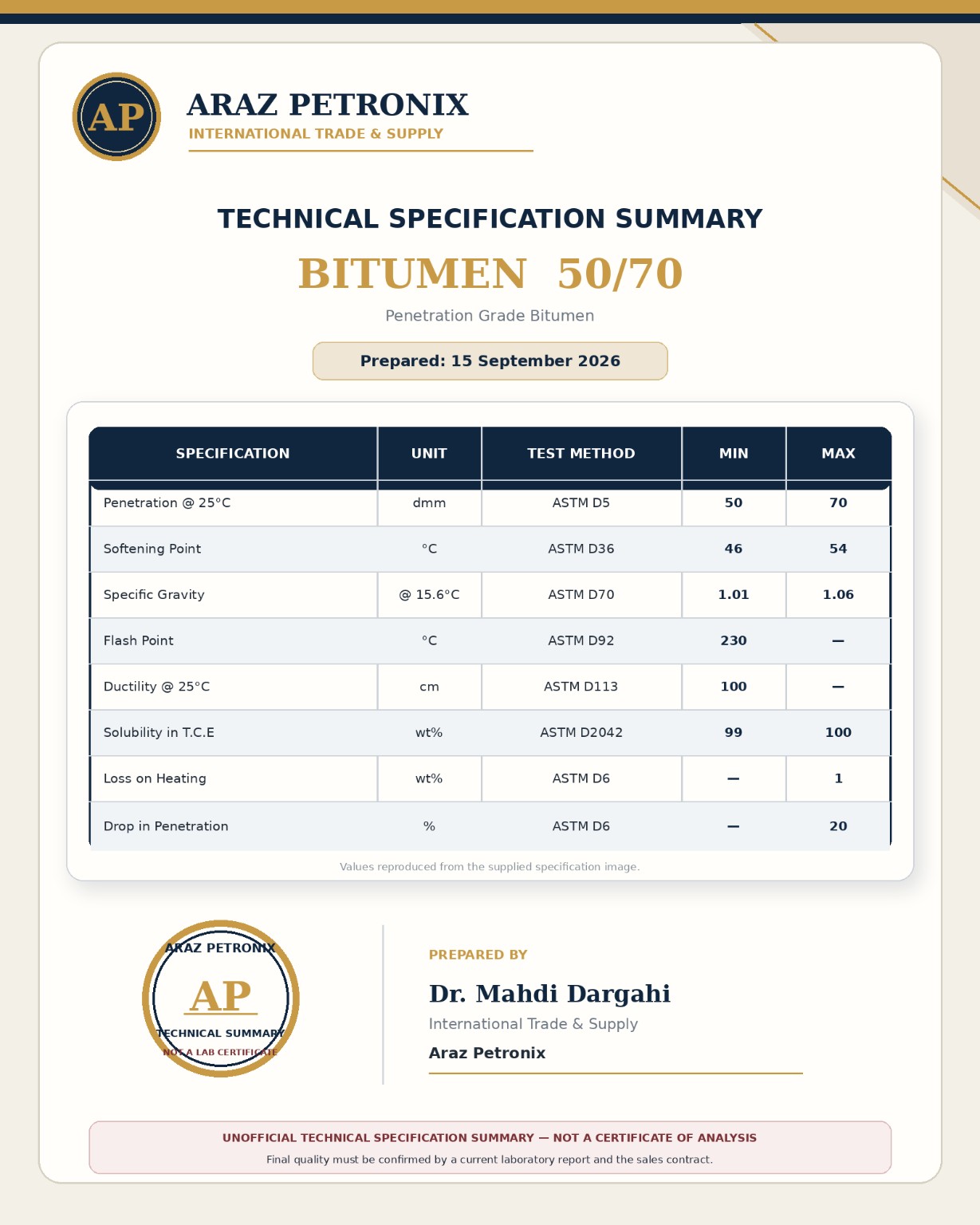

Reference specifications cover penetration grades, performance grades and Bitumen 50/70. A current batch COA and refinery allocation are supplied with the final commercial offer.
Penetration-grade specifications
| Grade | Penetration at 25°C (dmm) | Softening point (°C) | Ductility at 25°C | Flash point | Solubility |
|---|---|---|---|---|---|
| 30/40 | 30–40 | 55–63 | Min. 100 cm | Min. 250°C | Min. 99.5% |
| 40/50 | 40–50 | 52–60 | Min. 100 cm | Min. 250°C | Min. 99.5% |
| 60/70 | 60–70 | 49–56 | Min. 100 cm | Min. 250°C | Min. 99.5% |
| 85/100 | 85–100 | 45–52 | Min. 100 cm | Min. 250°C | Min. 99.5% |
| 100/120 | 100–120 | 42–49 | Min. 100 cm | Min. 250°C | Min. 99.5% |

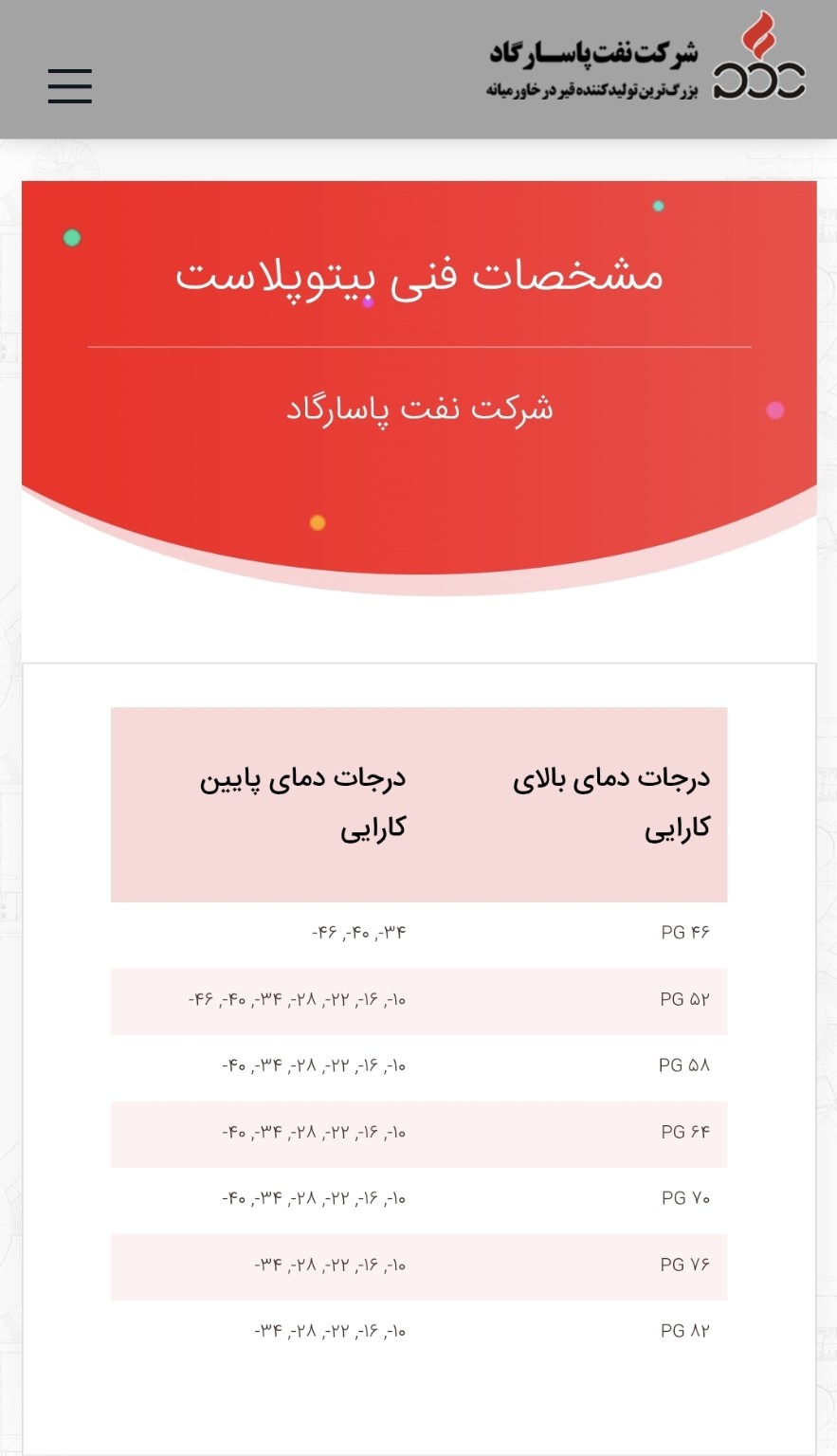

Performance grades (PG)
| High-temperature grade | Available low-temperature grades |
|---|---|
| PG 46 | −34, −40, −46 |
| PG 52 | −10, −16, −22, −28, −34, −40, −46 |
| PG 58 | −10, −16, −22, −28, −34, −40 |
| PG 64 | −10, −16, −22, −28, −34, −40 |
| PG 70 | −10, −16, −22, −28, −34, −40 |
| PG 76 | −10, −16, −22, −28, −34 |
| PG 82 | −10, −16, −22, −28, −34 |

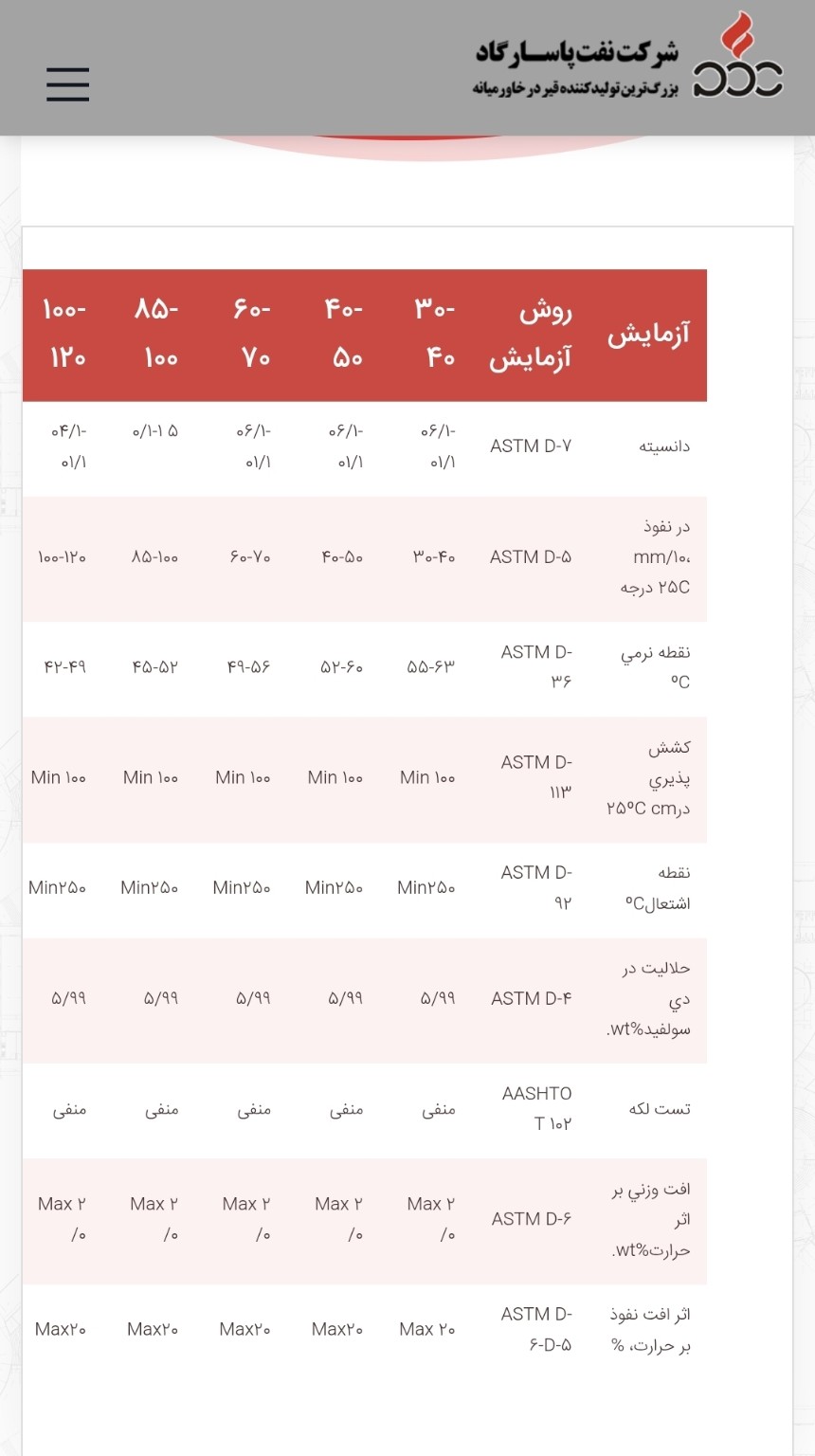

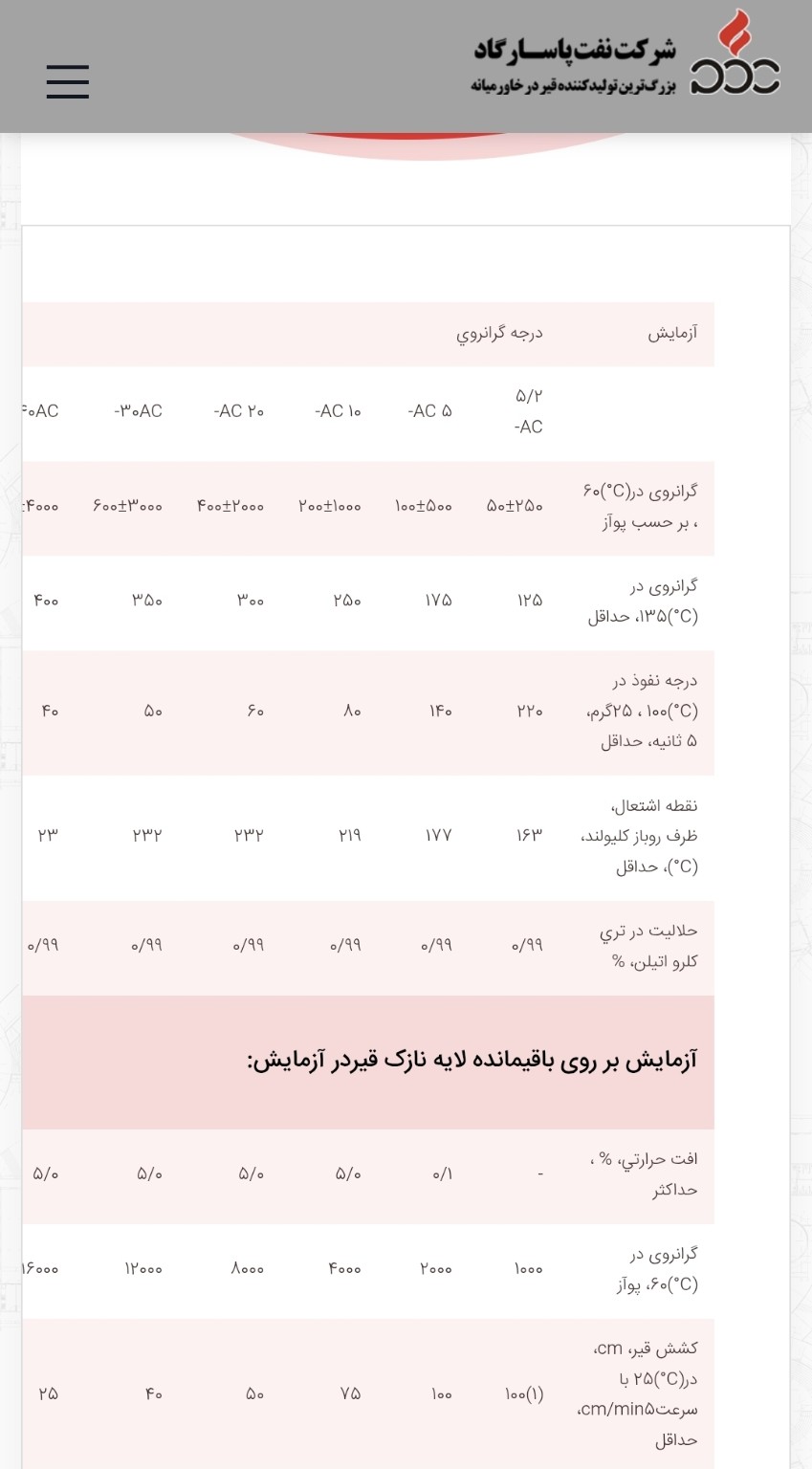

Original technical reference documents
Supplied refinery footage
Request bitumen quotation
Images and specifications are supplier-provided reference material. Current availability, refinery allocation, grade, packing and batch COA must be reconfirmed for every enquiry.
